Description
54-port 450 W Gigabit Ethernet PoE+ Layer 2+ Managed Switch with Six 10G Uplinks - a powerhouse of Power over Ethernet, ports and Self-Healing Network features

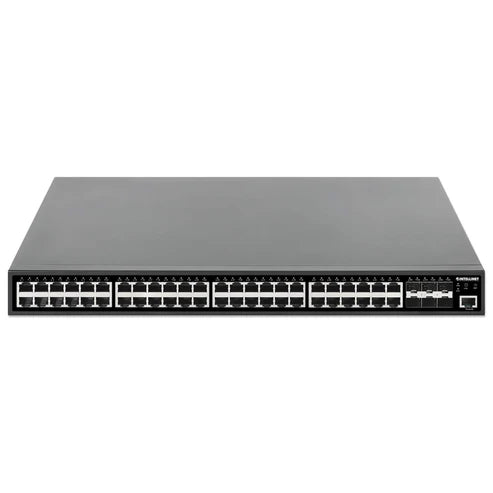

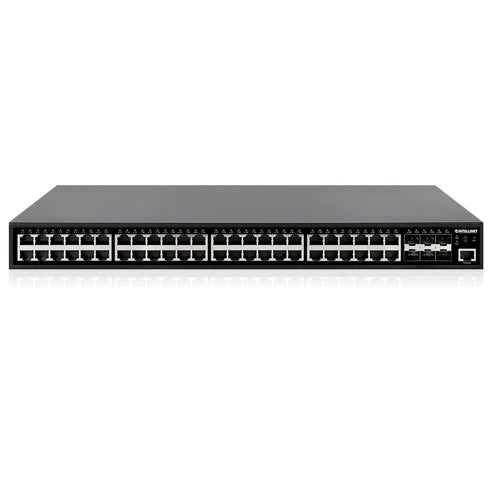

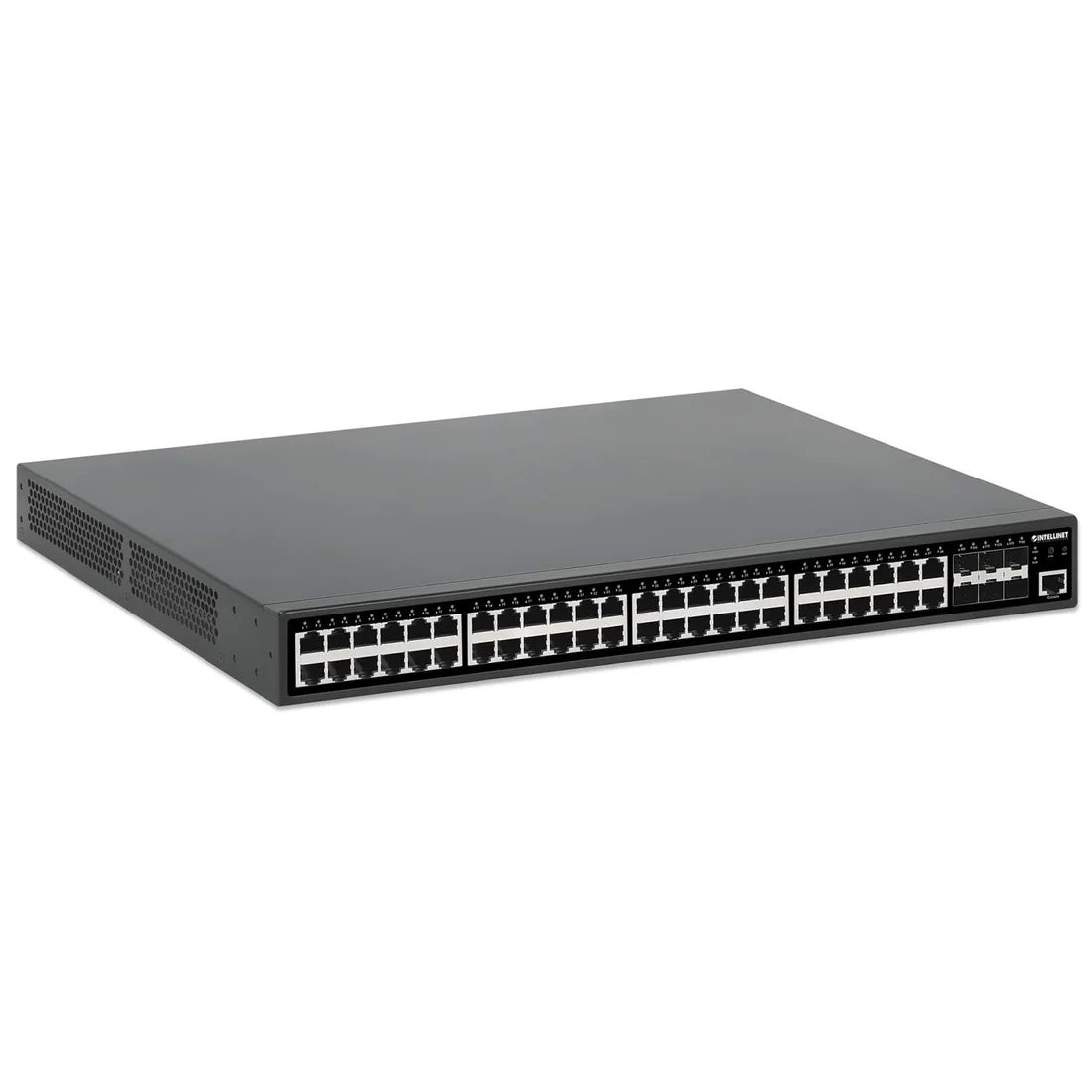

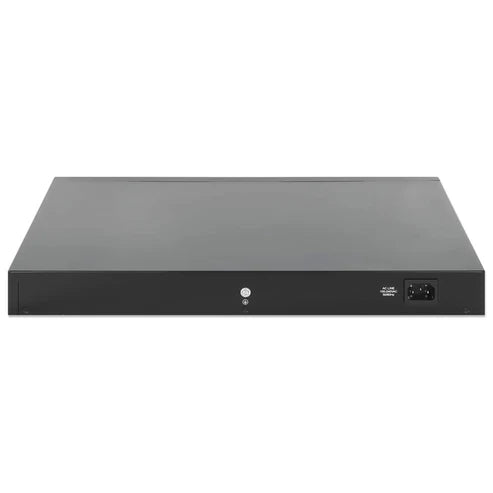

This 54-Port L2+ Fully Managed PoE+ Switch with 48 Gigabit Ports and 6 SFP+ Uplinks is one of the flagship switches from Intellinet Network Solutions. With six 10G SFP/SFP+ module slots, a PoE power budget of 450 watts, 48 Gigabit Ethernet ports and several features like VLAN, QoS, SNMP and IGMP, it is a feature-rich installer’s choice for medium-sized businesses.
Save installation time and money with PoE
This switch is designed to pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with 48 Gigabit Ethernet ports, all of which support 802.3at/af Power over Ethernet (PoE/PoE+), it can power wireless LAN access points and bridges, VoIP (Voice over Internet Protocol) telephones, IP surveillance cameras and more while providing a total switching capacity of 216 Gbps in for your network.
Power over Ethernet 802.3at
Supporting the IEEE 802.3at protocol, this switch is designed to inject up to 30 watts of power per port*. IEEE802.3af or IEEE802.3at compliant devices attached to the switch require no additional power, thus eliminating the time and expense of electrical rewiring and minimizing the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short circuit, overload and high-voltage protection function, your equipment is well-protected. For devices that are not 802.3at/af compliant (legacy wireless access points or network cameras), we suggest the use of an Intellinet Network Solutions PoE/PoE+ Splitter.
10 Gigabit Ethernet (IEEE 802.3ae)
Equipped with six 10G SFP+ open slots, this switch is the ideal solution for cost-sensitive organizations considering 10 Gigabit Ethernet. With 10G technology going mainstream and becoming ever more popular, the need for additional bandwidth has become more urgent than ever before - even in smaller networks. Whether you wish to connect servers, network-attached-storage units or NVRs at 10 Gbps, or even simply connect to another gigabit switch without resorting to LACP techniques, 10G provides the solution. And in case you are not quite ready for 10G just yet, it will happily take standard 1G SFP transceiver modules until the time is right for you to make the switch.
Self-Healing Network with increased reliability and stability - Intellinet Powered Device Monitor (PDM)
This Power over Ethernet switch is equipped with Powered Device Monitoring, a self-healing PoE function. This PoE watchdog performs a PD alive check to all connected PDs and automatically resets unresponsive devices, such as PoE security surveillance cameras, by cutting off and then restoring power. The PDM function is especially useful in applications where connected devices are critical to network operation, such as in industrial or surveillance settings. As an added benefit, the PD Alive function helps eliminate unnecessary technical support calls and costly field trips by field-support engineers because the functional reboot can often bring the unresponsive device back online.
Eliminate Bottlenecks with Gigabit Speeds
Equipped with 48 auto-sensing 10/100/1000 Mbps RJ45 Gigabit Ethernet ports, it offers plenty of performance for your computers, servers and other networking devices.
* Total PoE budget for this switch is 450 watts. Per-port average power distribution is 9.4 watts; maximum per-port power usage cannot exceed 30 watts.
Provides up to 48 PoE network devices with power and data
Six small-form-factor pluggable 10G SFP/SFP+ module slots
Self-Healing Network - the Powered Device Monitor feature (PDM) restarts any connected PoE device that fails to respond or send out network traffic
Domotz compatible for cloud management
PoE power budget of 450 watts
Power output up to 30 watts per port
Supports VLAN (tag-based and port-based)
10/100/1000 auto-sensing ports that automatically detect optimal network speeds
Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras)
Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
All RJ45 ports with Auto-MDIX and NWay auto-negotiation support
Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification
Green Ethernet power-saving technology that deactivates unused ports and adjusts power levels based on the cable length
Switch fabric of 216 Gbps
SNMP Management and Remote Monitoring (RMON)
IPv4/v6 dual protocol
Supports link aggregation (trunking)
IGMP Snooping for multicast filtering
Supports bandwidth control per port
Supports port mirroring
Supports two types of QoS: CoS and DSCP
Broadcast storm control with multicast packet rate settings
Supports jumbo frames up to 12 kBytes
Supports Rapid Spanning Tree/Spanning Tree protocol
Store and forward switching architecture
Full/half duplex operation
IEEE 802.3x flow control for full duplex
Supports 32k MAC address entries
Buffer memory of 2 MBytes
Configuration via Web browser or RJ45 console port
LEDs for power, link/activity, PoE and system

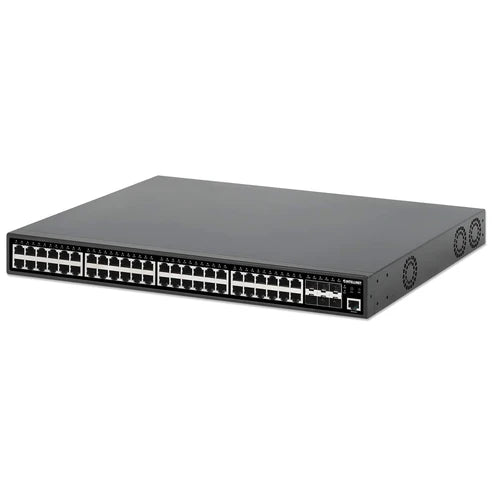

Three high-volume cooling fans to ensure perfect ventilation

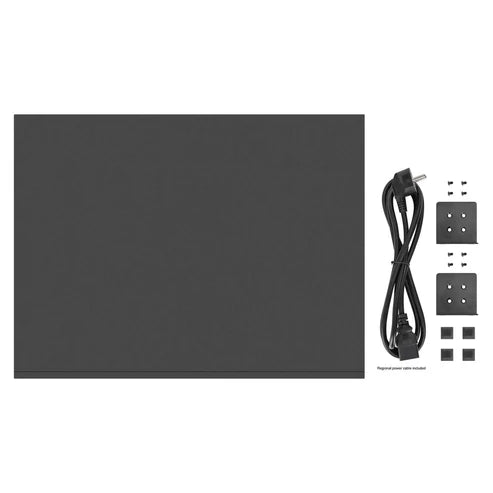

Includes 19" rackmount brackets
Fully NDAA-compliant
Three-year warranty
