Description
16-Port Gigabit Ethernet PoE+ Web-Managed Switch with 2 SFP Ports
IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Compliant, 374 W, Self-Healing Network, Endspan, 19" Rackmount
You asked for more power. We listened.
The Intellinet Network Solutions 16-Port Gigabit Ethernet PoE+ Web-Managed Switch with 2 SFP Ports (561198) is designed to pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with sixteen Gigabit Ethernet ports, all of which support 802.3at/af Power over Ethernet (PoE/PoE+), this switch can power Wireless LAN access points and bridges, VoIP (Voice over Internet Protocol) telephones, IP surveillance cameras and more while delivering network speeds of up to 1,000 Mbps.
Power over Ethernet 802.3at
The Intellinet Network Solutions 16-Port Gigabit Ethernet PoE+ Web-Managed Switch with 2 SFP Ports supports the IEEE 802.3at protocol and is designed to inject up to 30 watts of power per port*. IEEE802.3af or IEEE802.3at compliant devices attached to the switch require no additional power, thus eliminating the time and expense of electrical rewiring and minimizing the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short circuit, overload and high-voltage protection function, your equipment is well-protected. For devices that are not 802.3at/af compliant (legacy wireless access points or network cameras), we suggest use of an Intellinet Network Solutions PoE/PoE+ Splitter.
Sophisticated PoE Management Features including Self-Healing Network
The 16-Port Gigabit Ethernet PoE+ Web-Managed Switch from Intellinet Network Solutions offers thorough, real-time information regarding the connected PoE devices, how much power they consume, and how much power is still available. The delay-time-per-port feature reduces the power hike that usually happens at system start, and the PoE priority feature (low, medium, high) allows you to define mission-critical ports that will continue to receive power even if the switch's power budget limit has been exceeded. Furthermore, you can define the maximum available power per port, turn PoE on and off per port and monitor the current power draw of all connected PoE devices. Finally, the Intellinet Network Solutions switch can send SNMP-traps messages to alert the administrator that the total power draw on the switch exceeds the user-defined threshold value. The Powered Device Monitor (Intellinet Network Solutions PDM) feature keeps an eye on connected PoE devices and restarts them in case they stop responding (PD Alive). What's more, you can also program the Intellinet Network Solutions PoE switch to restart connected PoE devices based upon a schedule, ensuring that the PoE devices remain stable and operational.
Eliminate Bottlenecks with Gigabit Speeds

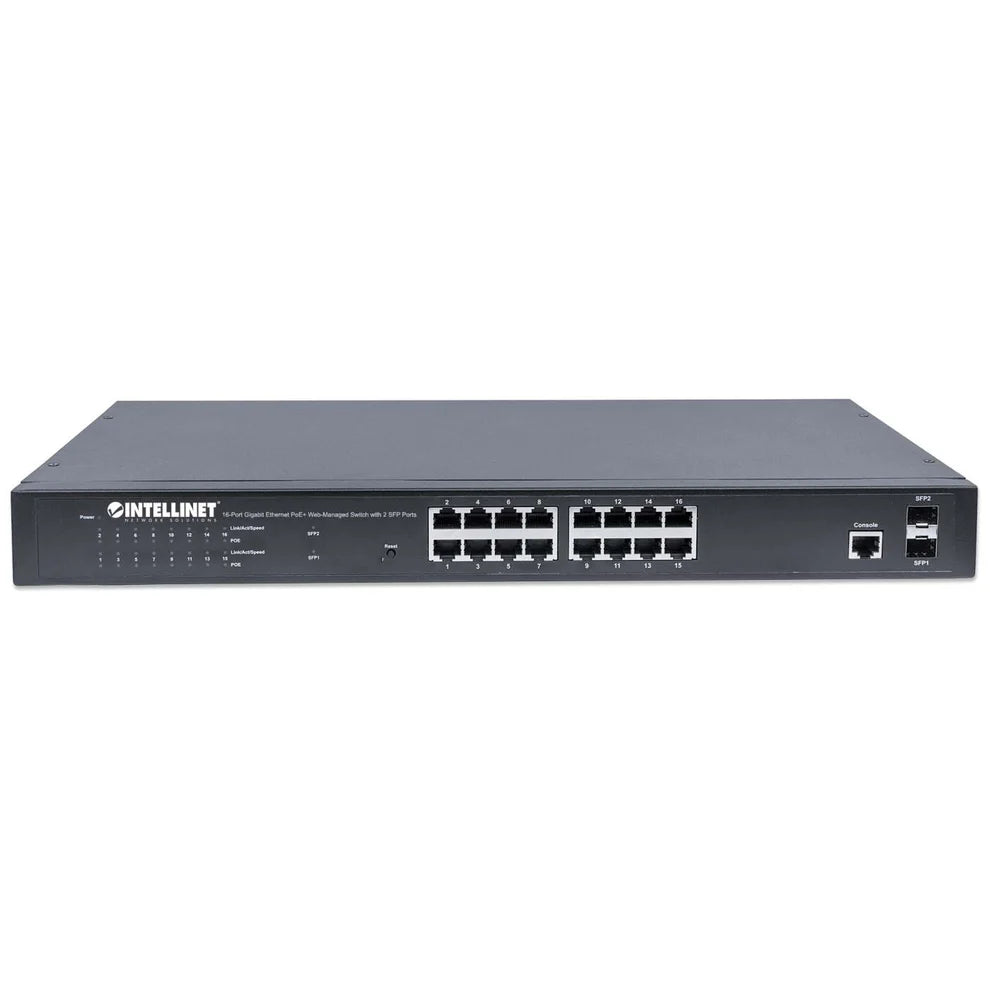

Equipped with 16 auto-sensing 10/100/1000 Mbps RJ45 Gigabit Ethernet ports, the 16-Port PoE Web-Managed Gigabit Switch (561198) offers plenty of performance for your computers, servers and other networking devices. In addition, two small form-factor pluggable GBIC module slots (SFP) provide fiber connectivity for greater distances.
Full Layer 2+ Management Features
The switch includes full Layer 2+ Management features. The software set includes up to 4k 802.1Q VLAN and advanced protocol VLAN, and private VLAN. There are eight physical Quality of Service queues, Multicast filtering, Rapid Spanning Tree Protocol to avoid network loop, Multiple Spanning Tree Protocol (MSTP) to integrate VLAN and spanning tree, LACP, port mirroring and advanced network security features.
Advanced Security
The Intellinet Network Solutions 16-Port PoE+ Web-Managed Gigabit Switch (561198) supports advanced security features. For secure switch management, HTTPS and SSH are provided. In addition, the login password and configuration packets are secured. Port binding allows a specific MAC address to be bound to a port, and then only that MAC has the privilege to access the network. Thanks to 802.1X port based access control, every user needs to be authorized first when they want to access the network. The Layer 2+ access control list (ACL) allows the user to define the access privilege based on IP or port number.

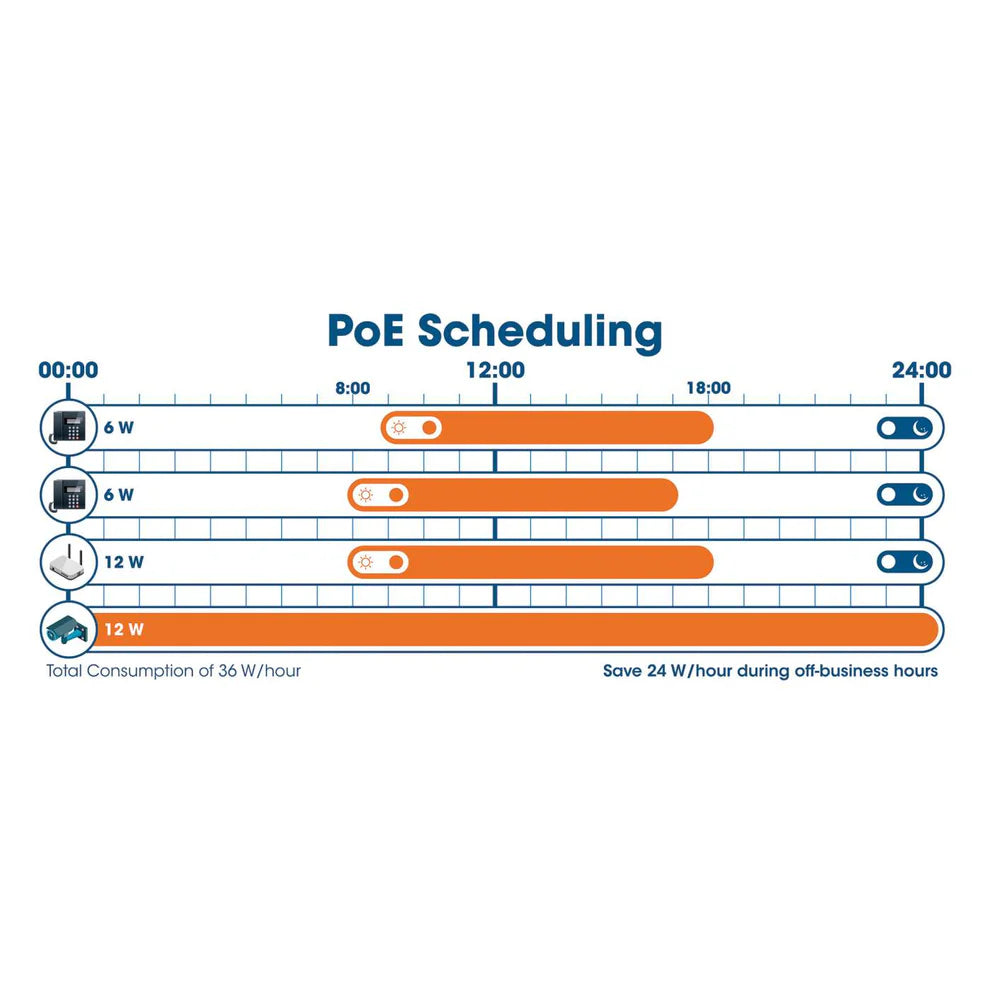

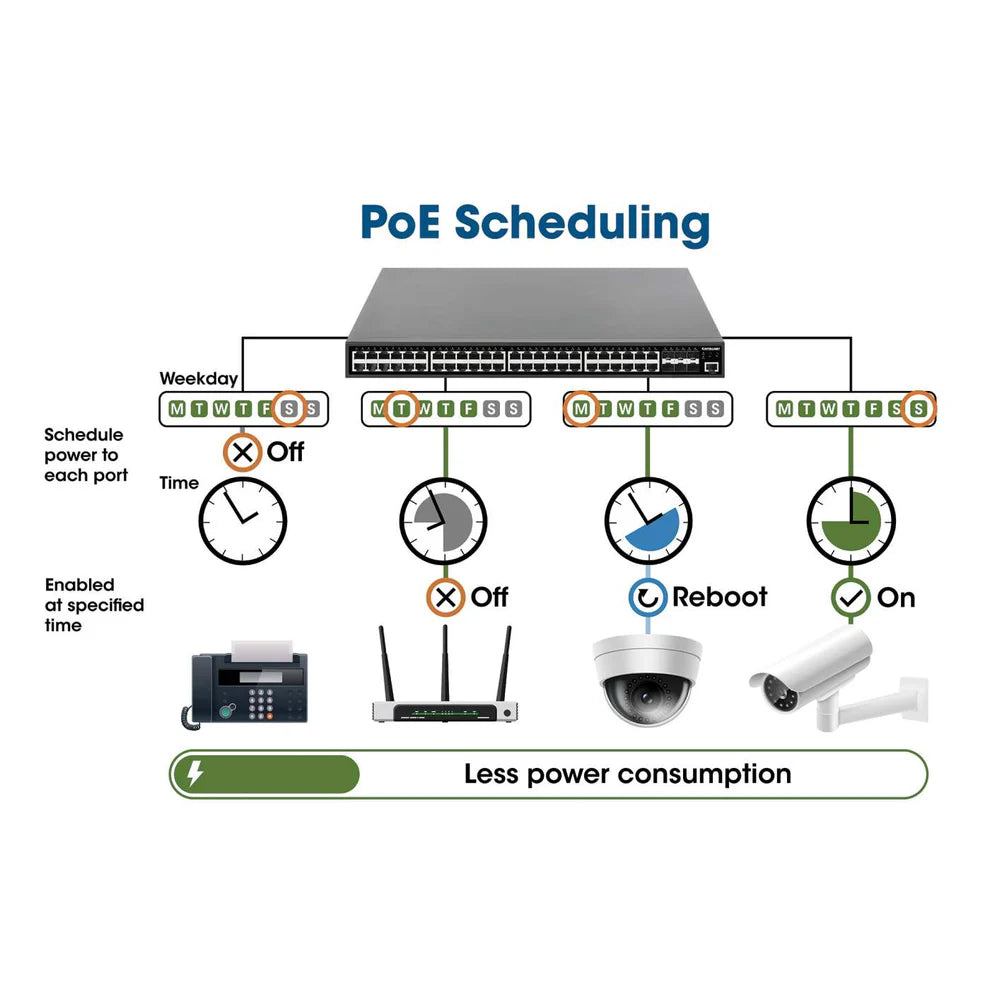

How our PoE scheduling saves you energy
As part of our Self-Healing Networks suite, our managed switches are not only capable of providing high power but also of controlling the power supply efficiently. The "PoE scheduling" function allows you to turn on or off the PoE power for each PoE port at specific time intervals. Turning off devices like IP phones and access points outside of office hours helps your enterprise reduce its energy costs and protect the environment.
* Total PoE budget for this switch is 374 watts. Per-port average power distribution is 23 watts; maximum per-port power usage cannot exceed 30 watts.
Provides power and data connection for up to 16 PoE network devices
Save installation cost by delivering data and power over existing network cables
Self-Healing Network - the Powered Device Monitor feature (PDM) restarts any connected PoE device that fails to respond or send out network traffic
Domotz compatible (may require firmware upgrade)
10/100/1000 auto-sensing ports automatically detect optimal network speeds
Two small form-factor pluggable GBIC module slots (SFP)
IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports
Power output up to 30 watts per port*
PoE power budget of 374 watts
36 Gbps switch fabric
Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras, etc.)
Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
All RJ45 ports with Auto-MDIX and NWay auto-negotiation support
Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification
IEEE 802.3az (Energy Efficient Ethernet EEE) can be deactivated
PoE management functions include PoE port settings, priority, power-on delay, scheduled PoE device restart and PoE device monitoring
SNMP Management and Remote Monitoring (RMON)
SNMP V1, V2C, V3 with RMON groups 1, 2, 3 & 9
IPv4/v6 dual protocol
Supports VLAN (tag-based and port-based)
Provides IEEE 802.1x port-based security
Supports link aggregation (trunking)
Supports bandwidth control per port
Supports port mirroring
Supports two types of QoS: port-based and DSCP
Broadcast storm control with multicast packet rate settings
512 kBytes buffer memory
Supports 8k MAC address entries
Supports jumbo frames up to 9 kBytes
Supports Rapid Spanning Tree/Spanning Tree protocol
Store and forward switching architecture
Full/half duplex operation
IEEE 802.3x flow control for full duplex
Configuration via Web browser, Telnet or SSH
Remote Reboot/restart
LEDs for power, link/activity and PoE
Two high-volume cooling fans ensure perfect ventilation
Fully NDAA-compliant
Three-Year Warranty
