Description
Highlights
Provides up to four PoE network devices with power and data
Power over Ethernet with output up to 95 watts per port
PoE power budget of 240 watts (depending on the power supply used)
Hardened PoE Switch - Industrial 6-Port Gigabit PoE++ Switch with DIN Rail Mount - unmanaged 802.3bt Power over Ethernet connectivity for harsh environments

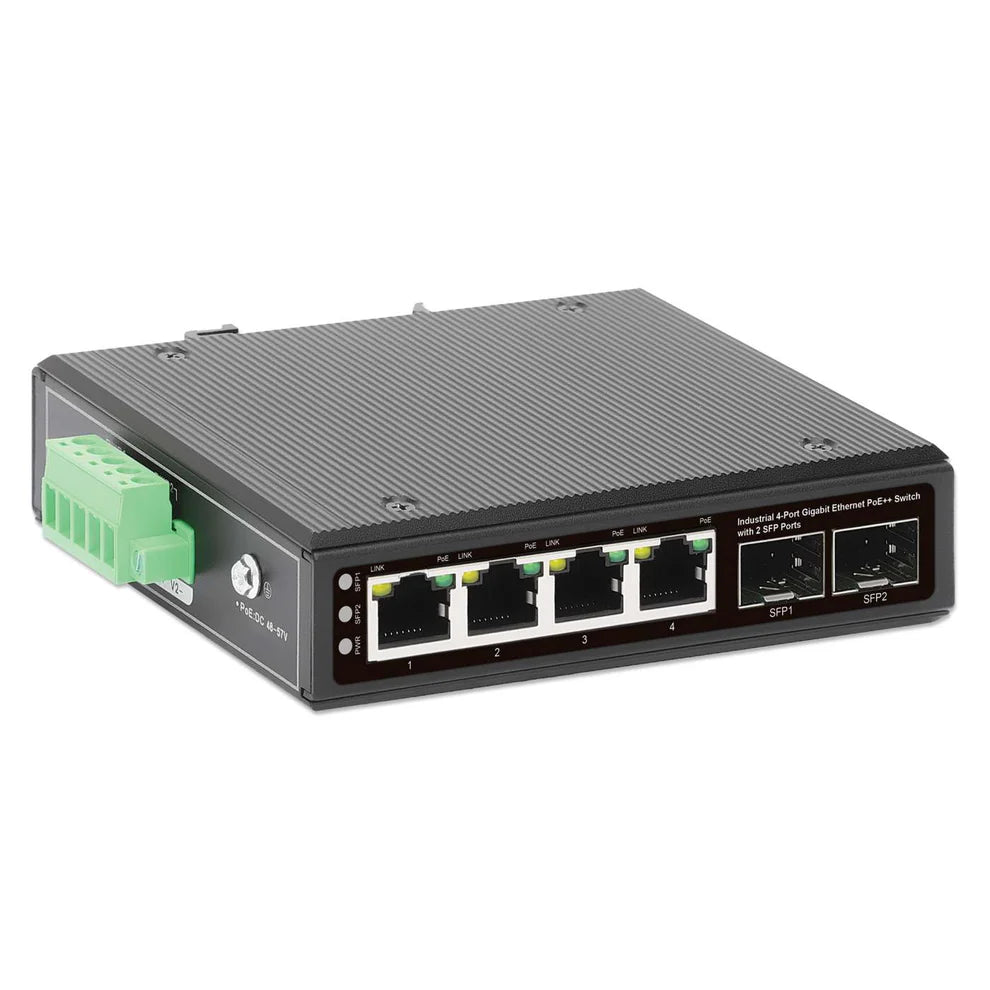

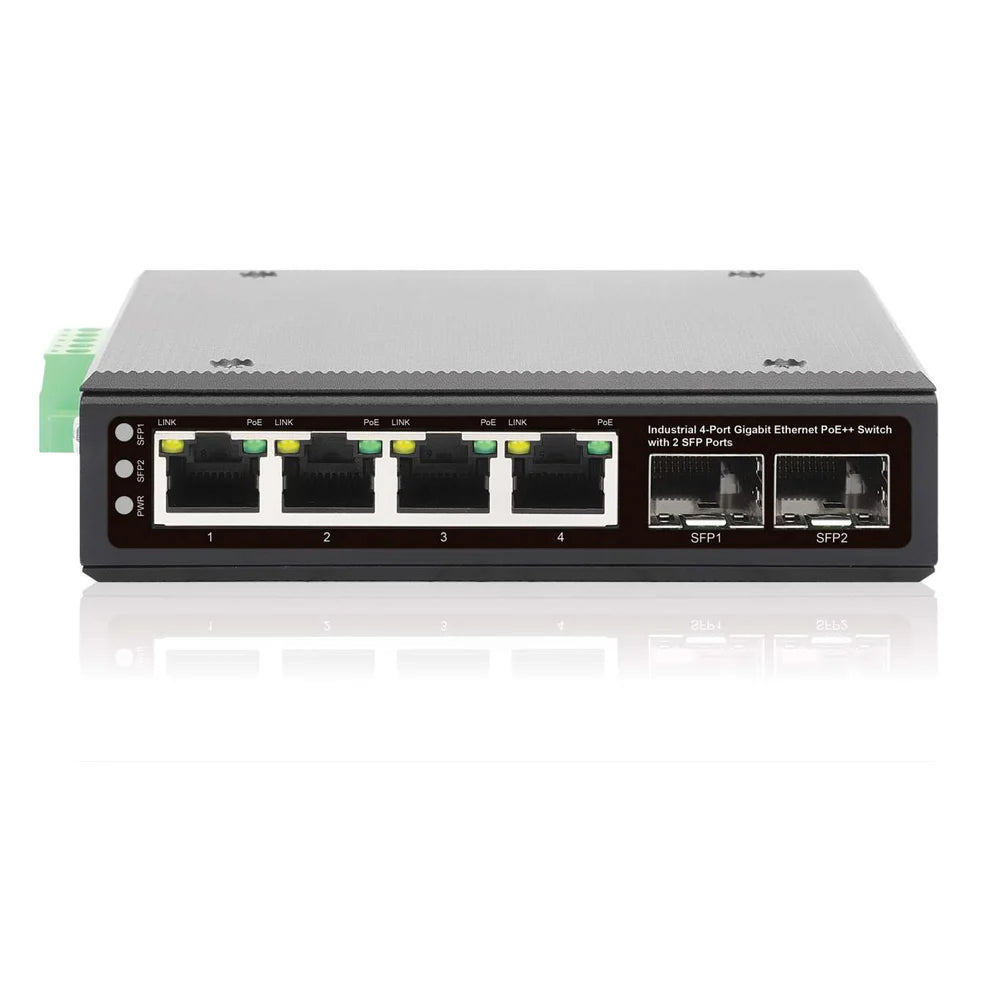

The Industrial 4-Port Gigabit Ethernet PoE++ Switch with 2 SFP Ports from Intellinet Network Solutions was designed to give you the network connections and device power you need in places that are less than calm or temperate. With a rugged IP40-rated metal case, the switch operates reliably and quietly, even in extreme temperatures that range from -20 - 75°C (-4 - 167°F). In combination with its DIN-rail mounting option and two safe, redundant DC power inputs and plenty of other safety features, this switch is ideal for IoT applications in Industry 4.0 and more.
Ultra-high 4PPoE output of 95 W per port paired with a large Power Budget and Gigabit Speeds

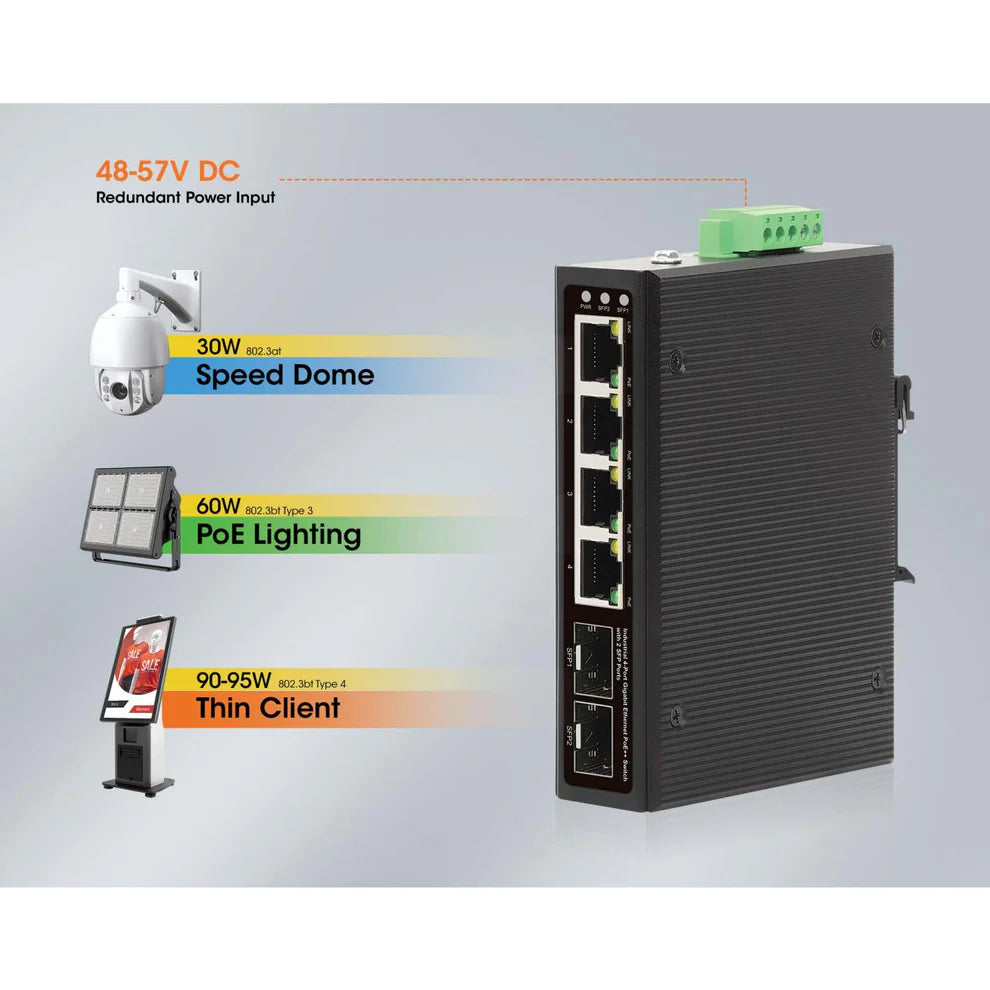

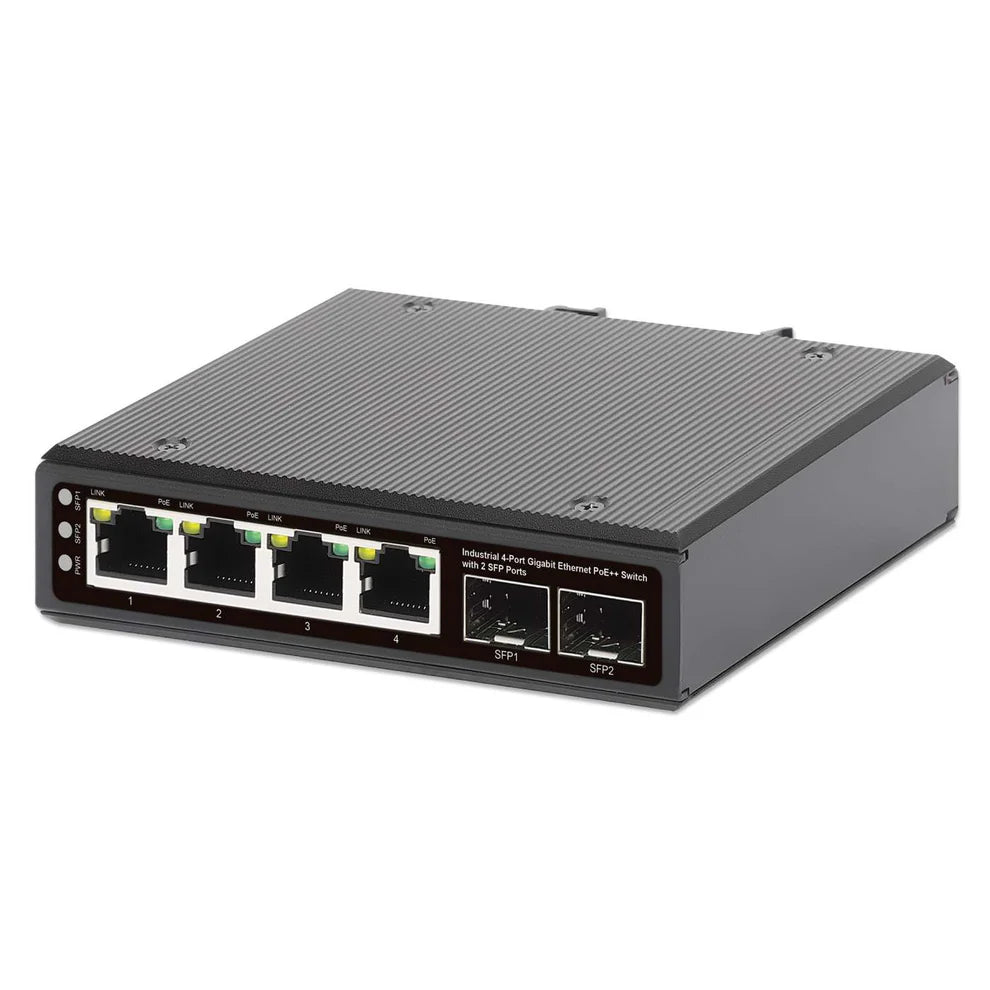

Featuring four auto-sensing 10/100/1000 Mbps RJ45 Gigabit Ethernet ports, this unmanaged switch offers plenty of performance for the devices in your network. Two small form-factor pluggable (SFP) GBIC module slots provide fiber connectivity for greater distances. The switch features a power budget of 240 W and can distribute a full 95 W (per the IEEE 802.3bt standard) to an RJ45 port while being downwards compatible with IEEE 802.3at/af. The output power rating up to 95 watts is enough for even very power-hungry PoE++ devices like motorized PTZ cameras, thin clients, point-of-sale systems, lighting controllers and digital signage applications.
Safe protection for your expensive network equipment
The auto-sensing technology of this PoE Switch ensures that your products are protected from power problems like short circuits (short GND), current overloads and high voltages. Port surge protection up to 6 kV and ESD protection up to 15 kV make its safety complete.
Provides up to four PoE network devices with power and data
Power over Ethernet with output up to 95 watts per port
PoE power budget of 240 watts (depending on the power supply used)
Two small form-factor pluggable (SFP) GBIC module slots
IP40 slim-type metal housing to withstand harsh industrial conditions
Suitable for extreme operating temperatures of -20 to 75ºC (-4 to 167ºF)

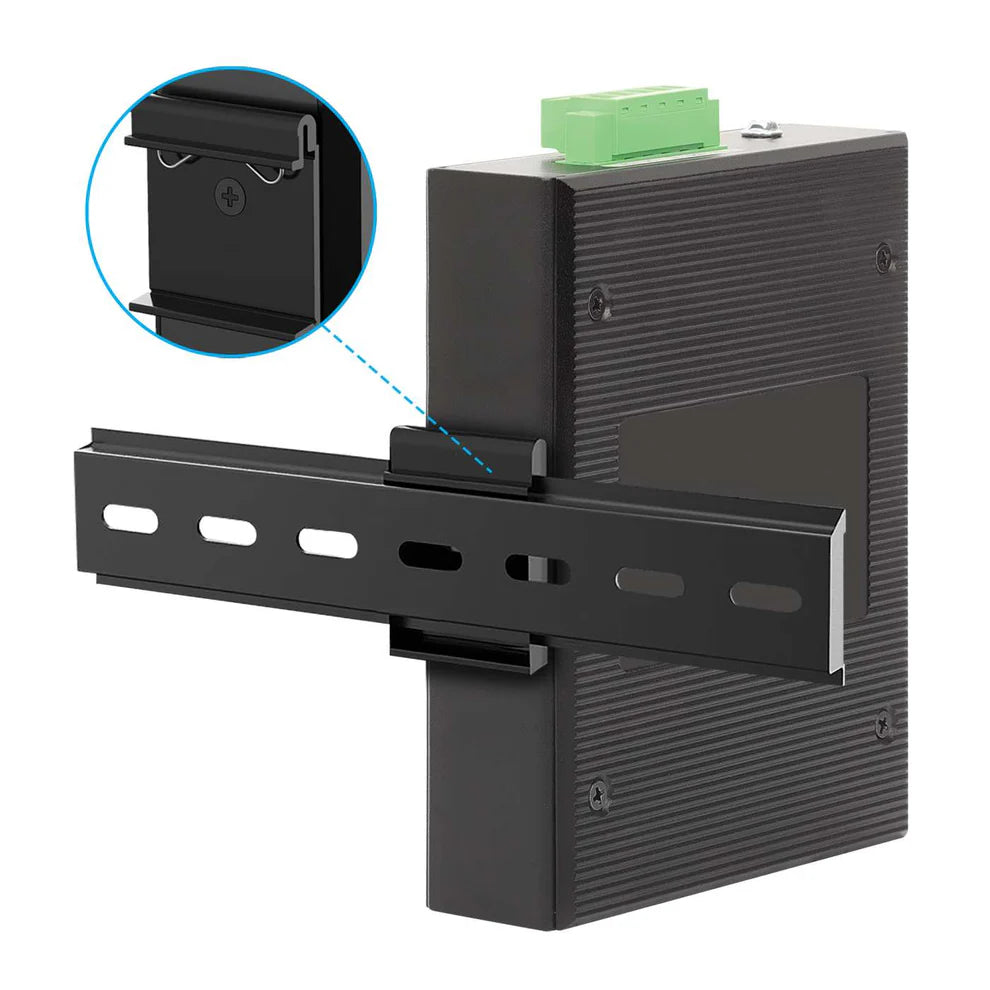

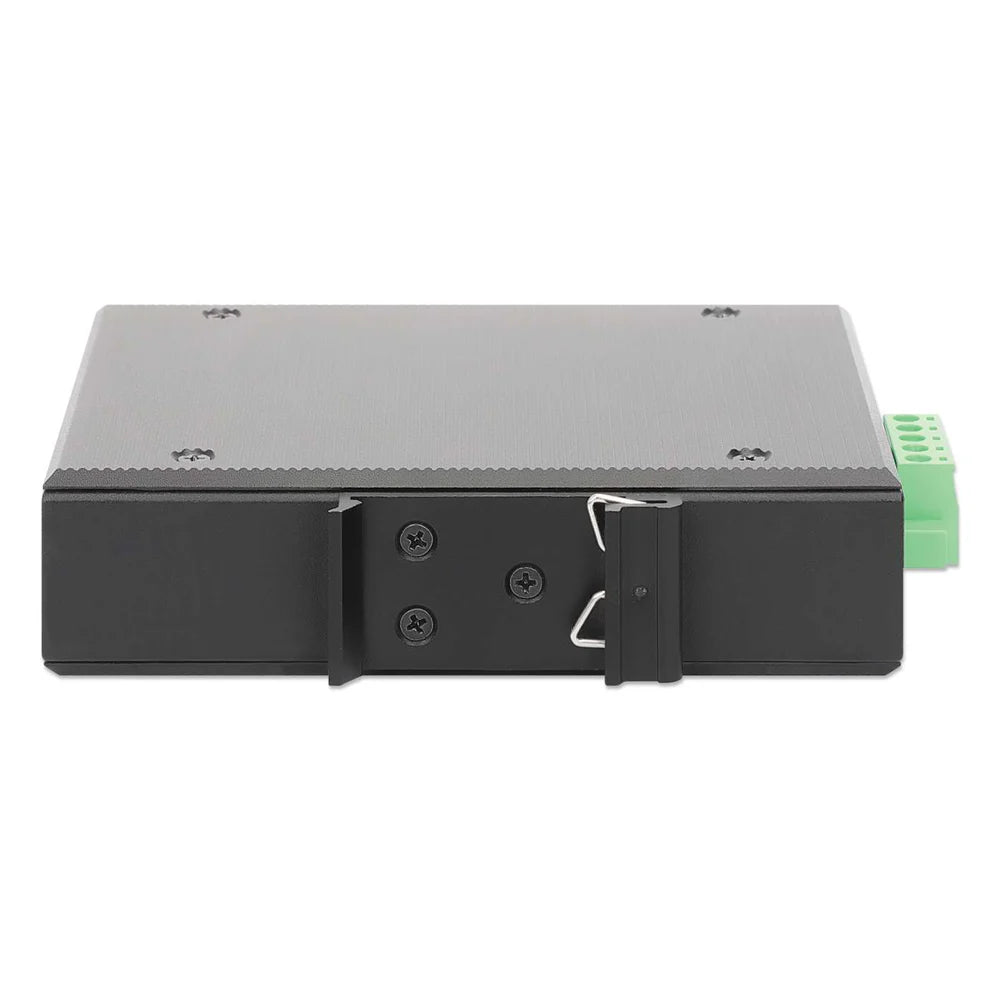

Option for DIN-rail installation
10/100/1000 auto-sensing ports that automatically detect optimal network speeds

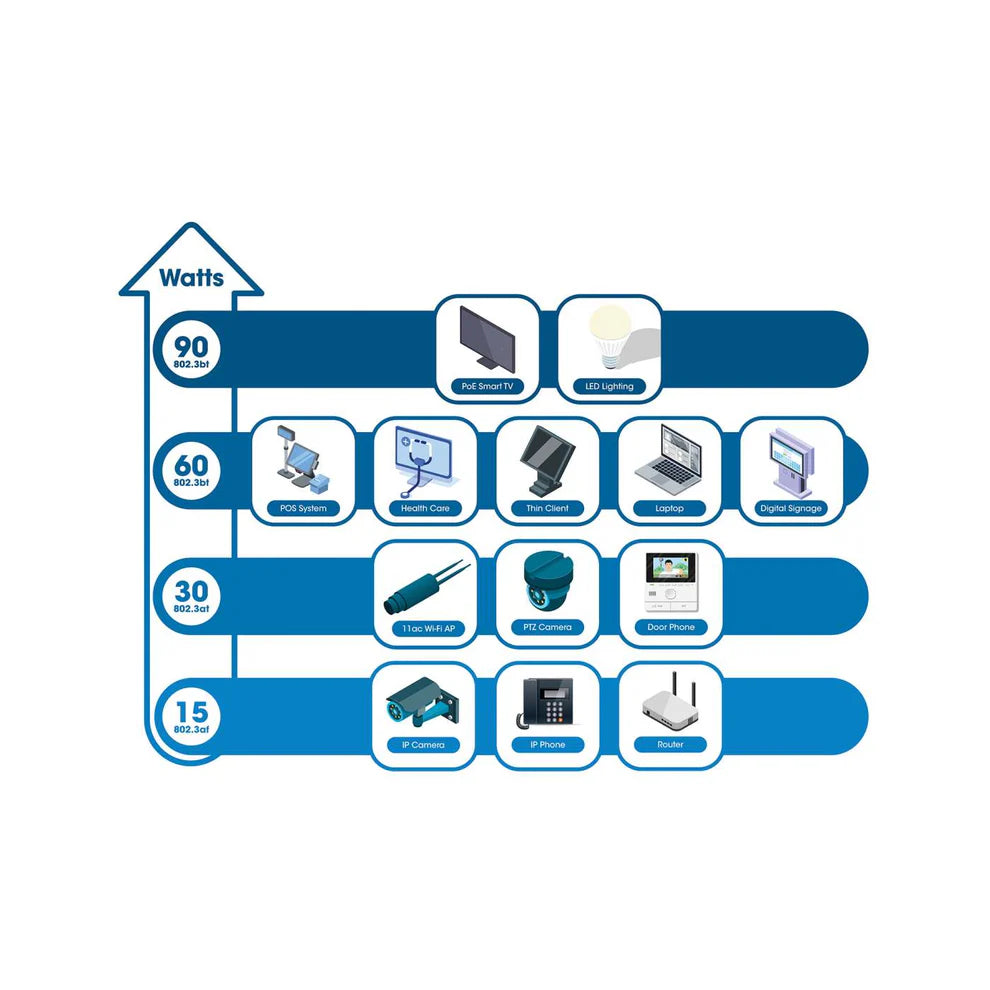

Compatible with IEEE 802.3bt/at/af-compliant powered devices (PD) such as network cameras, wireless access points, VoIP phones and more
Two redundant DC inputs (48 - 57 V) with I/O terminal block
ESD protection up to 15 kV (air) and 8 kV (contact)
Port surge protection up to 6 kV
Grounding point to protect equipment from external electrical surges
Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32) and vibration (IEC 60068-2-6)
12 Gbps switch fabric
Supports IEEE 802.3bt/at/af detection and short circuit, overload and high-voltage protection
Auto-MDIX and NWay auto-negotiation support on all RJ45 ports
Supports 2k MAC address entries with Auto-Learning and Auto-Aging
Supports jumbo frames up to 9.2 kBytes
Store and forward switching architecture
Full/half duplex operation
IEEE 802.3x flow control for full duplex

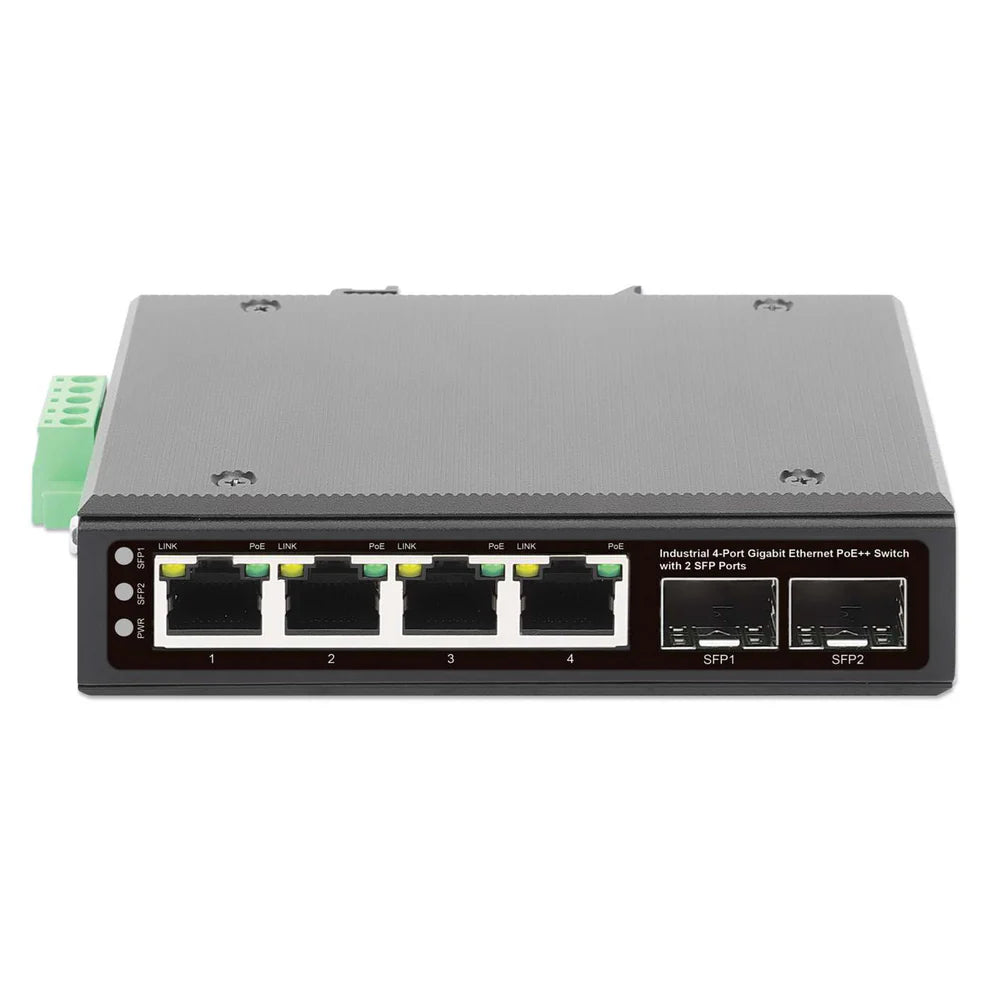

LEDs for power, link/activity and PoE
Fanless design for silent operation
Requires additional industrial power supply (not included)
Fully NDAA-compliant
Three-year warranty
